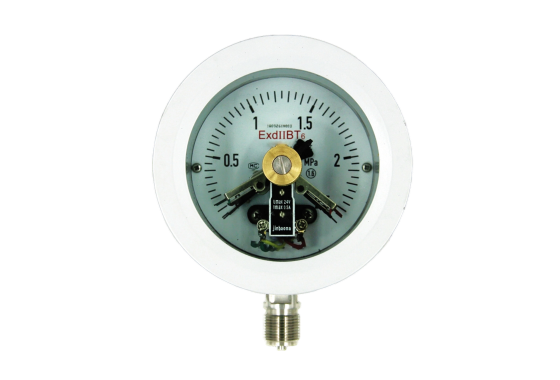

YXFB Explosion-proof Electrical Contact Pressure Gauge
About YXFB Explosion-proof Electrical Contact Pressure Gauge
Hollysys YXFB Explosion-proof Electrical Contact Pressure Gauges are specifically designed for use in hazardous locations characterized by explosive atmospheres. These gauges are suitable for measuring non-viscous, non-crystallizing, and slightly corrosive gases and liquids under conditions of pressure, vacuum, or similar environments. The internal contacts of the instrument feature electrical configurations that comply with corresponding explosion-proof ratings. They effectively monitor medium pressure while providing essential functions such as automatic control, alarm activation, and signal transmission. Primary applications encompass a wide range of industries including petroleum, chemicals, metallurgy, power generation, food processing, pharmaceuticals, environmental protection, and machinery manufacturing.
Product Features
-
Designed for hazardous locations with explosive atmospheres
-
Measures non-viscous, slightly corrosive gases and liquids
-
Explosion-proof contacts meet relevant safety standards
-
Enables automatic control, alarms, and signal transmission
Technical Parameters
-
Nominal diameter
Φ100 mm, Φ160 mm
-
Accuracy level
Class 1.6, Class 2.5 (Φ100 mm), Class 1.6, Class 2.5 (Φ150 mm)
-
Measuring range
-0.1 to 0 to 0.1...60 MPa, or equivalent pressure/vacuum ranges available
-
Overpressure capacity
Full scale × 130%
-
Ambient temperature
-40ºC to 70ºC
-
Media temperature
-40ºC to 100ºC. When the measurement system temperature deviates from 20±5ºC, the setting error shall not exceed 0.02% /ºC.
-
Process connection
M20 ×1.5, 1/2" NPT, G1/2" (Other connection types are available upon request)
-
Sensing element
C-type tube (<10 MPa), spiral tube (≥ 10 MPa)
-
Wetted material
304SS
-
Case material
Cast aluminum, powder-coated
-
Instrument pointer
Aluminum alloy, black
-
Setting pointer
Red/green for upper/lower limits; red for others
-
Window material
Tempered safety glass
