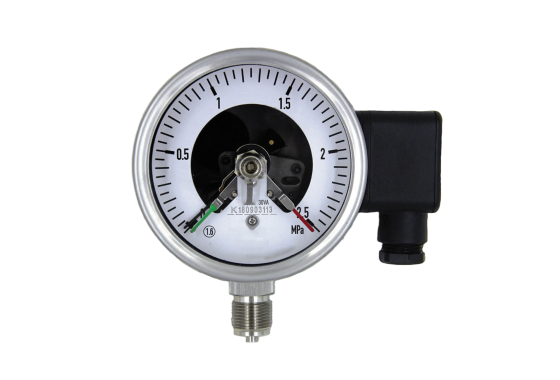

All Stainless Steel Electric Contact Pressure Gauge

Technical Parameters

• Nominal diameter

  Φ63 mm, Φ100 mm, Φ160 mm

• Accuracy level

  Class 2.5 (Φ63 mm), Class 1.0, Class 1.6, Class2.5 (Φ100 mm), Class 1.6 (Φ160 mm)

• Measuring range

  -0.1 to 0 to 0.1…100MPa (or other equivalent pressure and vacuum ranges)

• Overpressure capacity

  Full scale × 130%

• Ambient temperature

  -40ºC to 70ºC

• Media temperature

  -40ºC to 100ºC, When the measurement system temperature deviates from 20±5ºC, the indication error shall not exceed 0.02% /ºC.

• Process connection

  M20 × 1.5, 1/2" NPT, G1/2" (Other connection types are available upon request)

• Sensing element

  C shape tube (<10 MPa), spiral tube (≥ 10 MPa)

• Wetted material

  316L (Monel optional)

• Case material

  316L, 304SS (can be customized by user)

• Instrument pointer

  Aluminum alloy, black

• Instrument dial

  Aluminum alloy, white background with black lettering

• Sealing material

  Silicon rubber

• Instrument dial

  Aluminum alloy, white background with black lettering

• Window material

  Plexiglass (safety glass optional)

• Protection level

  IP54, IP65
