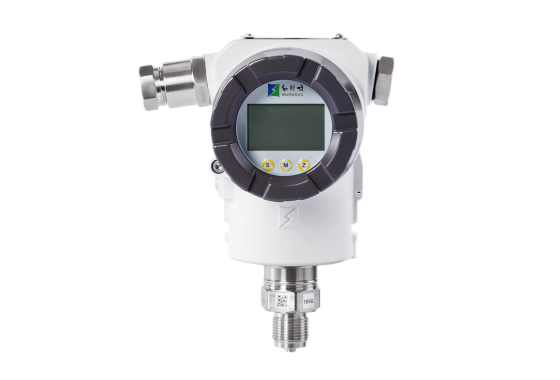

AT5020 Pressure Transmitter
Product Description
AT5020 monocrystalline silicon pressure transmitter is a high-performance pressure transmitter with international leading technology carefully developed by using the world's advanced monocrystalline silicon sensor technology and patented packaging process. These monocrystalline silicon sensor packaging technologies ensure that AT5020 monocrystalline silicon pressure transmitter can handle complex chemical and mechanical loads, while providing strong electromagnetic interference resistance for demanding industrial environment applications.
Features
-
Safety SIL2/3 Certification
-
High accuracy up to 0.05%FS of range
-
Stability maintainable within 0.1% over a period of 10 years in the URL
-
Wide range -100kPa~40MPa (minimum range 0~1kPa)
-
High pressure resistant static pressure up to 40MPa
-
Fast configuration intuitive interface and built-in buttons for quick commissioning of the device
-
Flexible liquid-contact material combinations 316L/HC/Tantalum/316L coated with PTFE/316 L gold plated
-
Diverse communication HART 7.0/Modbus-RTU and others
-
Rich process connectivity multiple standard process connections, as well as filler fluids, enabling connection to various forms of piping
-
Measurement type optional gauge pressure absolute pressure
-
Accessories convenient and user-friendly wide options in forms and material
-
Fully certified SIL NACE NEPSI ATEX CE
Technical Data
-
Monocrystalline Silicon Gauge Pressure Range
-100kPa~40MPa (minimum range 0~1kPa)
-
Monocrystalline Silicon Absolute Pressure Range
0~10MPa (minimum range 0~20kPa)
-
Ceramic Capacitor Gauge Pressure Range
1kpa - 4Mpa
-
Output Signal
4- 20mA + HART 7, Modbus -RTU/RS485 and others
-
Reference Accuracy
±0.075% upper range limit, optional ±0.05% upper range limit, see specifications for details
-
Measuring Medium
Fluids compatible with contact material
-
Applications
Pressure, Level
