Balise

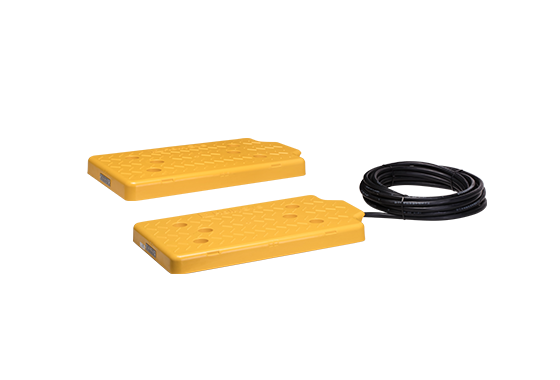

Balise is the safety transmission equipment which transmits safety related information between lineside equipment and train on-board equipment. Its main functions include receiving downstream energy emitted by BTM antenna, emitting up-link telegram and receiving telegram data from LEU.

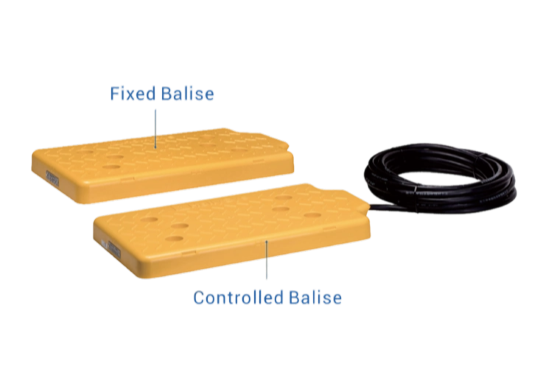

Balise refers to discrete point of information transmission on railway track. Under different application environments, Balise can be used as both fixed Balise and controlled Balise. When the train passes over Balise and activates it, fixed Balise will transmit prestored fixed message and controlled Balise will transmit variable message which is received from lineside electronic unit (LEU) or fixed message (default message).
Features
-
InteroperabilitySIL4 Certified; Baseline 4 of TSl Certified
Comply with ERTMS/ETCS Subset-036/Subset-085
-
ReliabilityUp to 4.85×105 hours
-
RuggednessIP68
Debris Class A and Class B
-
EfficiencyLow power consumption ≥ 13 mWh
Short response time: Operates within microseconds after activation
-
ApplicabilitySupport both short and long telegram
-
InstallabilityReduced size
Light weight: Approximately 4 kg
References
-
HollySys provided self-developed Balise to the Passenger Rail Agency of South Africa (PRASA) in the KwaZulu-Natal (KZN) Service Region, and also to Turkey.
-
Over 10 projects have been executed for the supply of balises, covering main lines, intercity railways, and airport transit systems, including Chengdu-Dazhou-Wanzhou Railway, Zhengzhou-Kaifeng Intercity Railway, Harbin-Tieli Railway, Tieli-Yichun Railway, Dunhua-Baihe Railway, Chongqing Airport and Kunming Airport.
