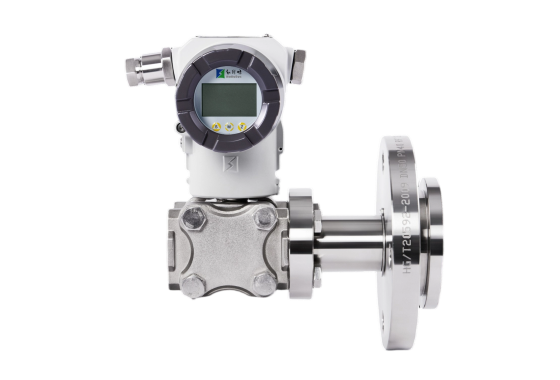

AT5010 Single Flange Differential Pressure/Level Transmitter

About AT5010 Single Flange Differential Pressure/Level Transmitter

HollySys AT5010 differential pressure/level transmitter is a high-performance pressure transmitter with international leading technology carefully developed by using the world's advanced monocrystalline silicon sensor technology and patented packaging process. The monocrystalline silicon sensor is located at the top of the metal body, away from the contact surface of the medium, to achieve mechanical isolation and thermal isolation. The sintered glass integrated sensor leads achieve high-strength electrical insulation with a metal matrix, improving the electronic circuit's flexible performance and ability to withstand transient voltage protection. These monocrystalline silicon sensor packaging technologies ensure that AT5010 differential pressure level transmitter can handle complex chemical and mechanical loads, while providing strong electromagnetic interference resistance for demanding industrial environment applications.

Product Features

SIL2/3 certification
Accuracy up to ±0.05% FS
10-year stability of ±0.1% of URL
-500 kPa to 3 MPa (minimum range 0 to 100 Pa)
Static pressure up to 40 MPa
SS316L/HC/Tantalum/SS316L coated with PTFE/SS316L gold plated/Inconel 625, etc.
HART 7.0/Modbus-RTU and others
Multiple standard process connections, as well as filler fluids, enabling connection to various forms of piping, connection standards are according to EN, ASME/ANSI, GB, GOST, JIS etc.
Combination of more complex level and volume flow mea surements possible
Convenient and user-friendly, wide options in forms and material
Precision in measurement
Exploration in our range of state-of-the-art differential pressure transmitters
Unrivaled precision for accurate industrial measurements
Display and output flow rate
SIL, NACE, NEPSI, ATEX, CE, PMI, EN10204

Technical Parameters

Range

-100 kPa to 1 MPa (minimum range 0 to 4 kPa). See model code for details.
Output signal

4 to 20 mA and HART 7, Modbus-RTU/RS485 and others
Reference accuracy

±0.2% FS, optional ±0.1% FS )optional). See datasheet for details.
Measuring medium

Liquid, gas, steam and other medium which is suitable for wetted parts
Application scenarios

Pressure, differential pressure, level, density, interface and flow rate
