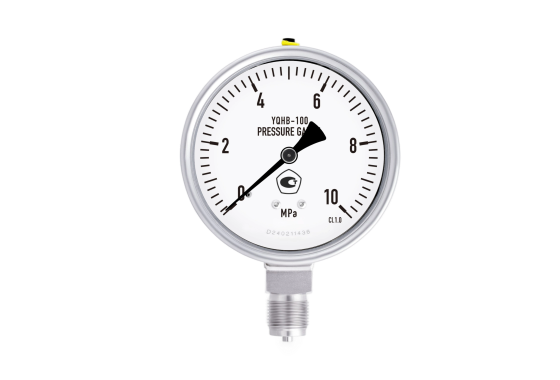

YQHB (N) All Stainless Steel Safety Pressure Gauge
About YQHB (N) All Stainless Steel Safety Pressure Gauge
HollySys YQHB (N) All Stainless Steel Safety Pressure Gauge designed for use in harsh and corrosive environments, capable of measuring non-viscous, non-crystallizing, and slightly corrosive gas and liquid media. A safety disc is incorporated into the casing to safeguard the observation surface. Additionally, the rear is equipped with a pressure relief back cover to mitigate internal pressure resulting from the rupture of overloaded elastic elements, thereby enhancing the safety of personnel and equipment. This product is primarily utilized in industries such as petroleum, chemical, metallurgy, power generation, food, pharmaceuticals, environmental protection, machinery, and shipbuilding.
Product Features
-
All stainless steel construction for harsh environments
-
Built-in safety disc for enhanced protection
-
Rear pressure relief back cover
-
Wide industrial application
Technical Parameters
-
Nominal diameter
Φ63 mm, Φ100 mm, Φ160 mm
-
Accuracy level
Class 2.5 (Φ63 mm), Class 1.0, Class 1.6 (Φ100 mm, Φ160 mm)
-
Measuring range
-0.1 to 0 to 0.06...60 MPa (or equivalent pressure and vacuum range)
-
Overpressure capacity
Full scale × 130%
-
Ambient temperature
-40ºC to 70ºC
-
Media temperature
-40ºC to 100ºC, When the ambient temperature deviates from the standard range of 20°C ± 5°C, the indication error shall not exceed 0.04% /°C
-
Process connection
M14 × 1.5, 1/4"NPT (Φ63 mm), M20 × 1.5, 1/2"NPT (other connection types are available upon request) (Φ100 mm, Φ160 mm)
-
Sensing element
C shape tube (<10 MPa), Spiral tube (≥ 10 MPa)
-
Wetted material
316L (Monel optional)
-
Case material
316L, 304SS (can be customized by user)
-
Instrument pointer
Aluminum alloy, black
-
Instrument dial
Aluminum alloy, white background with black lettering
-
Sealing material
Silicon rubber
-
Window material
Safety glass
-
Protection level
IP65, IP66
