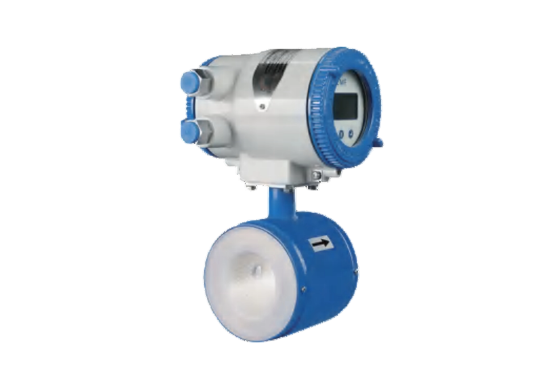

AF-EMF8J Electromagnetic Flowmeter for Slurry & Pulp
About AF-EMF8J Electromagnetic Flowmeter for Slurry & Pulp
HollySys AF-EMF8J Electromagnetic Flowmeter for Slurry & Pulp is a high-performance product specially used to measure solid-liquid two-phase fluid media. It is a groundbreaking product in the field of paper pulp and mineral pulp measurement, with excellent performance and more economical cost to provide customers with better choice.
Product Features
-
Innovative technologies of multi-frequency excitation, digital noise reduction and new algorithm filtering
-
Accurate measurement
-
Stable data
-
Quick response
Technical Parameters
-
Converter
-
Accuracy
0.5%
-
Power supply
220 V AC/24 V DC
-
Output signal
4 to 20 mA/passive pulse
-
Communication
MODBUS/HART
-
Protection class
IP65/IP67
-
Sensor
-
Diameter
DN10 to DN350
-
Protection class
IP65/IP67/IP68
-
Flange pressure
PN6 to PN40
-
Medium temperature
-40 to 180ºC
-
Electrode material
316L/Hc/Ti/Ta/W/Pt
-
Lining material
FEP/PU
-
Connection
Flange/wafer/threaded/clamp
-
Structure
Integrated type/split type
-
Material (flange)
Carbon Steel (304/316/316L is optional)
-
Material (enclosure)
Carbon Steel (304/316/316L is optional)
