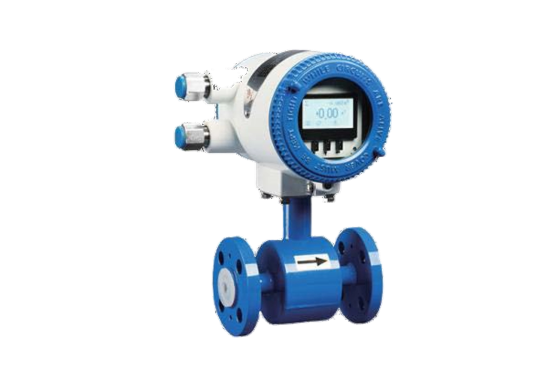

AF-EMF8W Electromagnetic Flowmeter for Low Flow Measurement

About AF-EMF8W Electromagnetic Flowmeter for Low Flow Measurement

HollySys AF-EMF8W Electromagnetic Flowmeter for Low Flow Measurement is a high-performance electromagnetic flowmeter specially developed for measuring small pipe diameters and low flow velocity media based on many years of experience in electromagnetic flowmeter applications. It provides the possibility of measuring microflows as low as 1L/h.


Product Features

  • icon01-106.svg

    Measurable flow rates as low as 1L/h

  • icon12-383.svg

    No need to reduce diameter, low lower limit of measurement

  • icon13-814.svg

    Response speed as low as ≤ 1.0s

  • icon14-516.svg

    Can be used without straight pipe sections

  • icon03-490.svg

    Precise dripping, saving costs

Technical Parameters

  • Converter

  • Accuracy

    0.3% (100 L/h < F < 1000 L/h)/0.1% F ± 0.2 L/h (F < 100 L/h)

  • Power supply

    220 V AC/24 V DC

  • Output signal

    4 to 20 mA/passive pulse

  • Communication

    MODBUS/HART

  • Protection class

    IP65/IP67

  • Sensor

  • Diameter

    DN10 to DN25

  • Protection class

    IP65/IP67

  • Flange pressure

    PN40

  • Medium temperature

    To 180ºC

  • Electrode material

    316L/Hc/Ti/Ta/Pt

  • Lining material

    FEP

  • Connection

    Flange/wafer/threaded/clamp

  • Structure

    Integrated type/split type

  • Material (enclosure)

    Carbon Steel (304/316/316L is optional)
