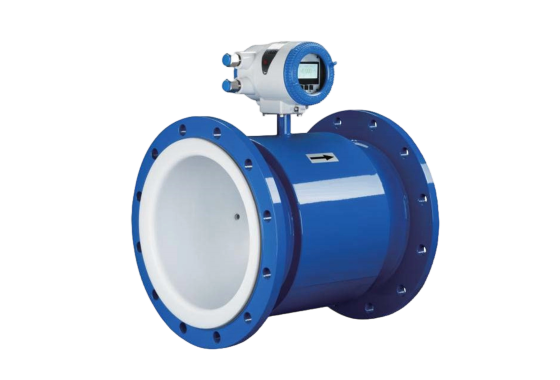

AF-EMF89 Intelligent Electromagnetic Flowmeter
About AF-EMF89 Intelligent Electromagnetic Flowmeter
HollySys AF-EMF89 Intelligent Electromagnetic Flowmeter adopts international advanced design concept and R&D technology to ensure the product to achieve high precision, high performance and wide measuring range. Products are widely used in various industries and suitable for various process applictions.
Product Features
-
Wide Range of ApplicationsVarious lining and electrode materials
-
Lower Installation RequirementsFront 5D and rear 2D straight pipe section
-
Electromagnetic CompatibilityCompliant with GB/T 17626 and IEC 61000 technical specifications
-
Energy-Saving MeasurementNo flow obstructions, almost no pressure loss
-
Minimalist RepairModular design converter, uninterrupted power-supply repair, Maintenance-free: no moving parts
-
Wide Range Ratio1000:1
Technical Parameters
-
Converter
-
Accuracy
0.5%/0.3%/0.2%
-
Power supply
220 V AC/24 V DC
-
Output signal
4 to 20 mA/passive pulse
-
Communication
MODBUS/HART
-
Protection class
IP65/IP67
-
Sensor
-
Diameter
DN10 to DN2000
-
Protection class
IP65/IP67/IP68
-
Flange pressure
PN6 to PN40
-
Medium temperature
-40 to 180ºC
-
Electrode material
316L/Hc/Ti/Ta/W/Pt
-
Lining material
Ne/FEP/PTFE/PU/PFA
-
Connection
Flange/Wafer/Threaded/Clamp
-
Structure
Integrated type/split type
-
Material (flange)
Carbon Steel (304/316/316L is optional)
-
Material (enclosure)
Carbon Steel (304/316/316L is optional)
-
Grounding element
Grounding electrode, grounding ring
