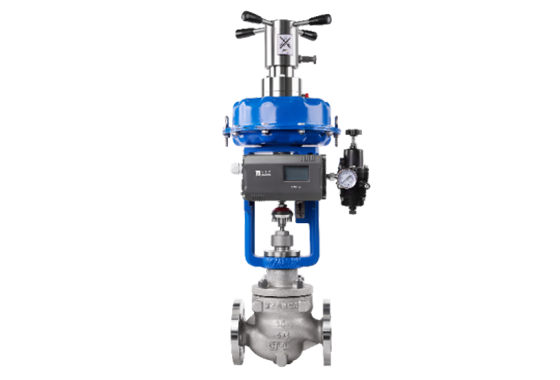

A100-DL Low Leakage Cage Type Control Valve

Product Description

Control valves for process industry and equipment requiring high control accuracy and small leakage.


Features

  • icon06.svg
    • Multi-spring pneumatic diaphragm actuator or cylinder-type double acting actuator available for, simple and firm structure, large output force and long service life

  • icon07.svg
    • Various valve body materials for, such as cast steel, cast stainless steel, low-temperature and high-alloy steel or special materials

  • icon08.svg
    • S-shaped streamlined channel of valve body, enabling small pressure drop loss, large flow capacity, wide adjustable range, high accuracy of flow characteristics

  • icon09.svg
    • Pressure balance structure of valve element, using small actuator thrust to control the high pressure difference, and a sealing ring between the valve element and the sleeve to reduce leakage

Technical Data

  • Nominal Diameter

    DN40 ~ DN400, NPS 1-1/2'' ~ 16''

  • Nominal Pressure

    PN16 ~ PN63, ASME CL150 ~ CL300

  • Temperature Range

    -100° C ~ +538° C

  • Standard

    Complying with GB, ANSI and other standards

  • Supporting Actuator

    Matching with A812/800 cylinder-type actuator
