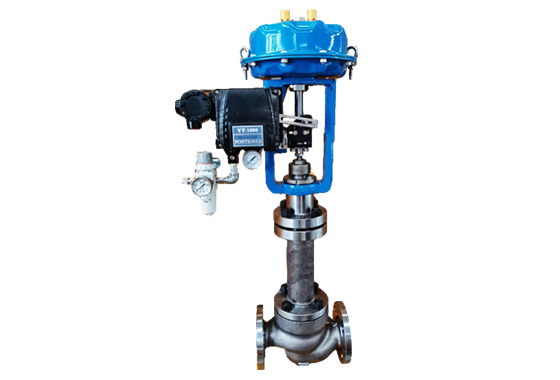

A104-DL Low Leakage Bellows Seal Cage Type Control Valve

Product Description

It is widely adopted in the automatic control system of highly toxic, highly corrosive, radioactive and rare precious media.


Features

  • icon13.svg
    • Multi-spring pneumatic diaphragm actuator or cylinder-type double-acting actuator available for, simple and firm structure, large output force and long service life

  • icon14.svg
    • Various valve body materials for, such as cast steel, cast stainless steel, low-temperature and high-alloy steel or special materials

  • icon15.svg
    • Compact structure and S-shaped streamlined channel of valve body, enabling small pressure drop loss, large flow, wide adjustable range, high accuracy of flow characteristics

  • icon16.svg
    • Pressure balance structure of valve element, using small actuator thrust to control the high pressure difference, and a sealing ring between the valve element and the valve cage to reduce leakage

  • icon17.svg
    • Bellows seal structure adopted for the upper bonnet, eliminating the possibility of medium leakage from the valve stem movement clearance

Technical Data

  • Nominal Diameter

    DN15 ~ DN300, NPS 1-1/2'' ~ 12''

  • Nominal Pressure

    PN16 ~ PN63, ASME CL150 ~ CL300

  • Temperature Range

    -45° C ~ +350° C

  • Standard

    Complying with GB, ANSI and other standards

  • Supporting Actuator

    Matching with A812/800 actuator
