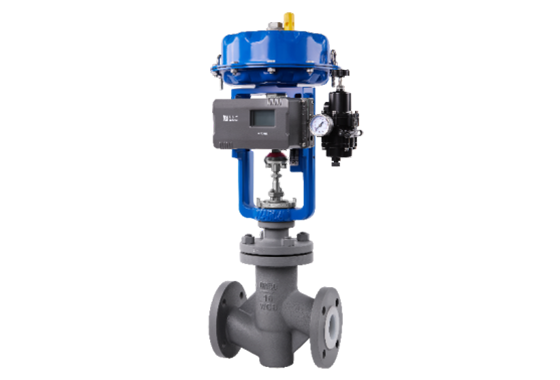

A100-F Fluorine Lined Single-Seat Control Valve

Product Description

Control valves for process industry and equipment requiring high adjustment accuracy and small leakage, widely used in the process control of acid, alkali and other strong corrosive media and toxic and volatile media in the industries of chemical, petroleum, metallurgy, medicine, electric power, etc.


Features

  • icon18.svg
    • Multi-spring pneumatic diaphragm actuator available for, simple and firm structure, large output force and long service life

  • icon19.svg
    • Corrosion-resistant valve body Valve body made of F46 or PFA lined cast steel available

  • icon01.svg
    • Tetrafluoroethylene-hexafluoropropylene copolymer (F46), a corrosion-resistant and aging-resistant material, lining at the valve body inner cavity, valve element, valve stem and other parts in contact with the medium

  • icon02.svg
    • Double seal with PTFE bellows and packing to ensure no leakage

Technical Data

  • Nominal Diameter

    DN20 ~ DN200, NPS 3/4'' ~ 8''

  • Nominal Pressure

    PN16, ASME CL150

  • Temperature Range

    -20° C ~ +150° C

  • Standard

    Complying with GB, ANSI and other standards

  • Supporting Actuator

    Matching with A812 actuator
