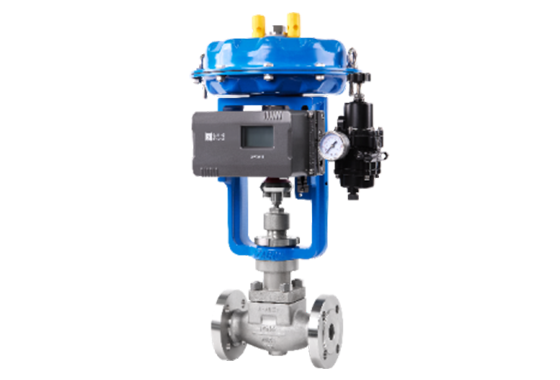

A100-P Single-Seat Control Valve
Product Description
Control valves for process industry and equipment requiring high control accuracy and small leakage.
Features
-
Multi-spring pneumatic diaphragm actuator available for selection, simple and firm structure, large output force and long service life
-
Various valve body materials for selection, such as cast steel, cast stainless steel, low-temperature and high-alloy steel or special materials
-
Suitable for various fluids with different pressures and temperatures. S-shaped streamlined channel of valve body, enabling small pressure drop loss, wide adjustable range, high accuracy of flow characteristics, large guide area of valve element and good vibration resistance
Technical Data
-
Nominal Diameter
DN15 ~ DN300, NPS 1/2'' ~ 12''
-
Nominal Pressure
PN16 ~ PN63, ASME CL150 ~ CL300
-
Temperature Range
-100° C ~ +566° C
-
Standard
Complying with GB, ANSI and other standards
-
Supporting Actuator
Matching with A812 actuator
