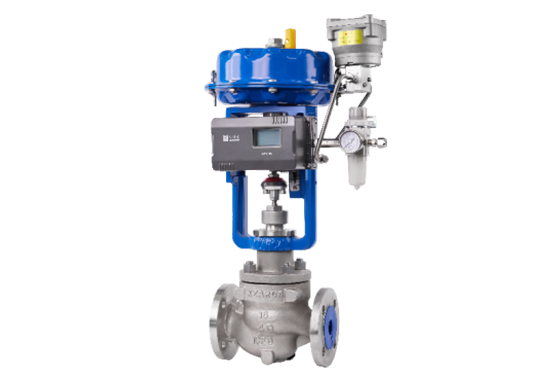

A100-LP Sleeve Single-Seat Control Valve

Product Description

Control valves for process industry and equipment requiring high adjustment accuracy and small leakage, especially for the applications of high pressure difference and flashing cavitation.


Features

  • icon03.svg
    • Multi-spring pneumatic diaphragm actuator available for selection, simple and firm structure, large output force and long service life

  • icon04.svg
    • Various valve body materials for selection, such as cast steel, cast stainless steel, low-temperature and high-alloy steel or special materials

  • icon05.svg
    • S-shaped streamlined channel of valve body, enabling small pressure drop loss, wide adjustable range, high accuracy of flow characteristics

Technical Data

  • Nominal Diameter

    DN15 ~ DN200, NPS 1/2'' ~ 8''

  • Nominal Pressure

    PN16 ~ PN63, ASME CL150 ~ CL300

  • Temperature Range

    -100° C ~ +566° C

  • Standard

    Complying with GB, ANSI and other standards

  • Supporting Actuator

    Matching with A812 actuator
