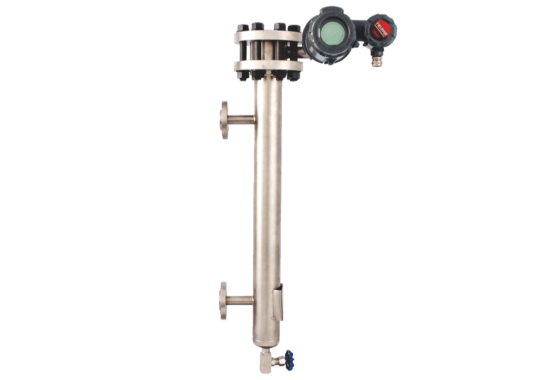

AL3000 Electromagnetic Float Level (Interface) Gauge

About AL3000 Electromagnetic Float Level (Interface) Gauge

HollySys AL3000 Electromagnetic Float Level (Interface) Gauge is a product assembled using the original FIELDVUE DLC3100 intelligent level controller from Fisher Control Equipment, USA. When the liquid level rises or falls, the internal float's weight changes, causing the torque tube to produce angular displacement. The sensor component outputs a differential signal, which is amplified and converted into a 4 to 20 mA signal. This signal is directly proportional to the changes in the liquid level. The DLC3100 intelligent level controller, which uses HART communication protocol, allows access to crucial process operation data. With the HART communicator, users can query, configure, calibrate, or test the intelligent level meter. The HART protocol also enables the download of field data to the control system or the reception of information for individual loops.

Features

Precise Level/Interface Measurement for Various Liquids

Accurate level and interface measurement for mixed liquids, emulsified layers, high-temperature and high-pressure liquids, low-density liquids, and more
Integrated Intelligent Measurement, Control, and Communication

On-site LCD display showing current value, percentage, or process temperature
Equipped with various communication and configuration interfaces
Intelligent Compensation and Standard Output

The microcontroller receives environment-compensated and linearized signals, also compensating for liquid density changes due to process temperature variations.
The digital-to-analog (D/A) output line provides a 4 to 20 mA current output signal based on the microcontroller's output.
Comprehensive Visualization

The LCD displays analog output, process variables (liquid level, interface high/low, or density), process temperature (if equipped with RTD), torque tube rotation angle, and the percentage range of displayed variables.
Robust and Convenient Integration

Sturdy construction with an integrated electromechanical design
The product comes with an external measurement tube for easy installation.
Wide Medium Compatibility

Capable of measuring various conductive media
Versatile Application

Suitable for multiple measurement requirements and offers customized designs for special applications
