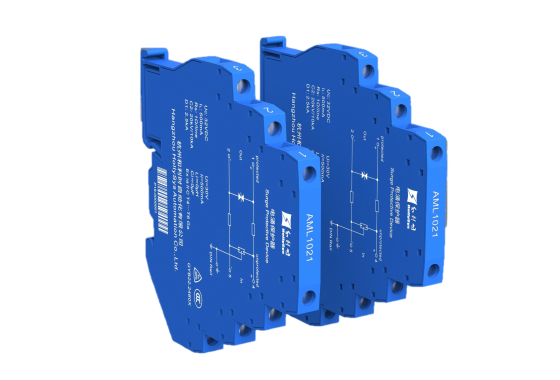

AML1000 Surge Protective Device (SPD)
About AML1000 SPD
HollySys AML1000 Surge Protective Device (SPD) is a component used to limit transient overvoltage and protect electrical or electronic equipment. It is also known as a surge arrester or lightning protection device. An SPD contains at least one nonlinear component that, in the event of a surge, can conduct within a very short time (on the nanosecond level) to discharge the current and limit the voltage to a safe level. SPD products are suitable for protecting power and signal cables that are directly or indirectly affected by lightning or other transient overvoltages.
Product Features
-
Signal Surge ProtectorUltra-slim 7.6 mm design for space-saving installation
Available in a wide range of voltages, suitable for various I/O designs
Maximum discharge current capacity: 20 kA (8/20 μs)
-
Power Surge ProtectorStatus indicator window (Green: Normal; Red: Fault)
Surge protection module supports hot-swapping
Maximum discharge current capacity: 40 kA (8/20 μs)
Remote signaling function (optional, specified when ordering)
Technical Parameters
-
Operating environment
The surrounding environment must be free from strong vibrations, shocks, and corrosive gases or dust that could affect the components of the product
-
Continuous operating temperature
-40ºC to +70ºC
-
Operating relative humidity
10% to 90%
-
Storage temperature
-40ºC to +80ºC
-
Storage relative humidity
10% to 90%
