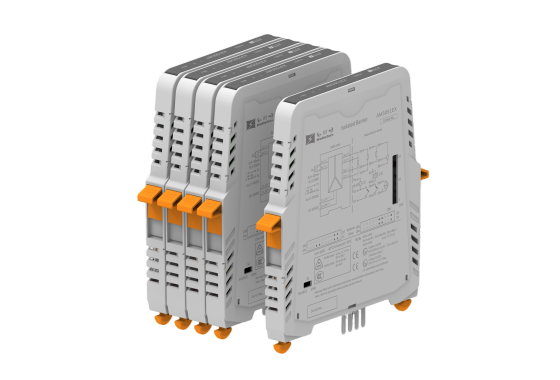

AM3000EX Isolated Safety Barrier
About AM3000EX Isolated Safety Barrier
HollySys AM3000EX isolated safety barriers is a backplane-mounted system, consisting of plug-in modules and a backplane. Each module features two connectors for insertion into the backplane-one for the intrinsically safe circuit and the other for the non-intrinsically safe circuit. The backplane provides power supply terminals and wiring terminals for connecting to the hazardous area.
Product Features
-
Modular Backplane SystemPlug-in design with dedicated backplane mounting
Enables flexible configuration and easy maintenance
-
Dual-Circuit IsolationSeparate connectors for intrinsically safe and non-intrinsically safe circuits
Ensures reliable signal separation for hazardous areas
-
Integrated Power SolutionBackplane provides centralized power supply terminals
Simplifies system wiring and reduces installation complexity
-
Hazardous Area ConnectivityDedicated wiring terminals for hazardous zone connections
Designed for safe operation in explosive environments
Technical Parameters
-
Safety isolation
250 V AC isolation between safe side and hazardous side
-
Dielectric strength
2,500 V AC for 1min (between intrinsically safe and non-intrinsically safe terminals)
-
Electromagnetic Compatibility (EMC)
Complies with GB/T 18268 "Electromagnetic compatibility requirements for electrical equipment for measurement, control and laboratory use" (equivalent to IEC 61326-1)
-
Electrostatic Discharge (ESD)
8 kV (air discharge)
-
Electrical Fast Transient (EFT)
2 kV (power line to ground), 1 kV (signal line to ground)
-
Surge immunity
2 kV (line to ground), 1 kV (line to line)
-
RF immunity
10 V/m
-
Operating temperature
-40°C to +70°C
-
Relative humidity
10% to 90% (non-condensing)
-
Storage temperature
-40°C to +85°C
-
Storage relative humidity
10% to 90% (non-condensing)
