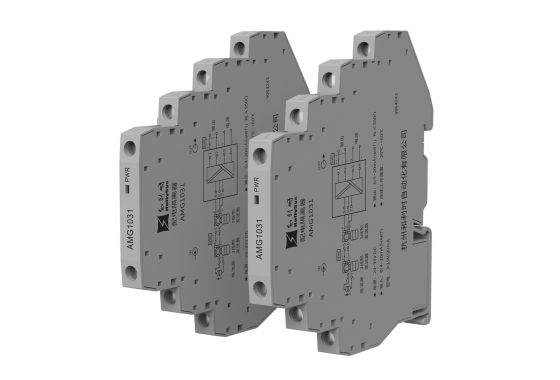

AMG1000 Ultra-Thin Signal Isolator
About AMG1000 Ultra-Thin Signal Isolator
HollySys AMG1000 is an ultra-thin signal isolator designed to ensure reliable isolation among power supply, input, and output, effectively eliminating interference in industrial automation control systems for enhanced stability and dependable operation. With a slim 7.6mm thickness, it optimizes space utilization while its low-power design allows for high-density, long-term reliable installation. Featuring screw terminal wiring for secure connections, the AMG1000 delivers robust performance in demanding industrial environments, making it an ideal solution for noise-free and efficient automation systems.
Product Features
-
Power SupplyIndependent power supply, loop power supply
-
Channels1-input 1-output, 1-input 2-output, 2-input 2-output
-
FunctionsSignal isolation, signal conversion, field instrument power distribution
-
Compatible Signals
2-wire/3-wire transmitter input (including HART)
Current signal input
Thermocouple/RTD input
Frequency signal input
Technical Parameters
-
Power protection
Reverse polarity protection
-
Isolation voltage
1,500 V AC, 1 min
-
EMC compliance
Meets GB/T 18268 (equivalent to IEC 61326-1) for electromagnetic compatibility in measurement, control, and laboratory electrical equipment
-
ESD (Electrostatic Discharge)
8 kV (air discharge)
-
EFT/Burst immunity
2 kV (power line to ground), 1 kV (signal line to ground)
-
Surge immunity
2 kV (line to ground), 1 kV (line to line)
-
RF immunity
10 V/m
-
Operating environment
No strong vibration, shock, or corrosive gases/dust
-
Operating temperature
-20ºC to +60ºC
-
Operating relative humidity
10% to 90%
-
Storage temperature
40ºC to +80ºC
-
Storage relative humidity
10% to 90%
