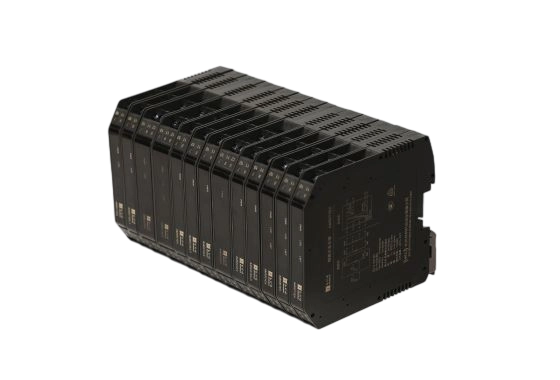

AM5000EX Isolated Safety Barrier

About AM5000EX Isolated Safety Barrier

HollySys AM5000EX Isolated Safety Barriers facilitate signal transmission, conversion, monitoring, and control between hazardous and safe areas, featuring high-precision conversion, isolation, and transmission characteristics that more accurately replicate on-site signals. The product's internal design eschews mechanical potentiometers, reducing vibration and long-term operational drift, and its surface is treated with anti-corrosion measures, ensuring stable and reliable long-term operation. Additionally, it boasts an ultra fast response, enabling the monitoring or control of field equipment with minimal delay.

Product Brochure

Download

Product Features

InIntelligent Diagnosis & Easy Configuration

Streamlined setup with clear zoning for efficient operation
Wide Operating Range

Minimal temperature drift (≤0.005% F.S./°C) across -30 to 70°C
Easy Installation

Redesigned modular structure accelerates deployment and maintenance
Anti-Interference Design

Advanced signal algorithms suppress electromagnetic interference for unwavering performance

Technical Parameters

Digital Input Isolated Safety Barrier
Product model

AM5011EX/AM5011EX.T/AM5012EX/AM5013EX
Siginal type

DI
Number of channels

1-input 1-output/1-input 1-output/1-input 2-output/1-input 2-output
Hazardous side

Switch, proximity switch input
Safe side

Relay output/Transistor output/Relay output/Relay output
Additional functions

Equipped with circuit fault detection function
Digital Output Isolated Safety Barrier
Product model

AM5021EX/AM5021EX.T
Siginal type

DO
Number of channels

1-input 1-output
Hazardous side

Output voltage is 212 V when the drive current is 45 mA
Safe side

Dry contact input/Wet contact input
Analog Input Isolated Safety Barrier
Product model

AM5031EX/AM5032EX
Siginal type

AI
Number of channels

1-input 1-output/1-input 2-output
Hazardous side

2, 3-wire transmitter input/Current source input
Safe side

0/4 to 20 mA/(HART) output
Analog Output Isolated Safety Barrier
Product model

AM5041EX/AM5041EX.D
Siginal type

AO
Number of channels

1-input 1-output
Hazardous side

0/4 to 20 mA (HART) output/4 to 20mA (HART) output
Safe side

0/4 to 20 mA (HART) output/4 to 20mA (HART) output
