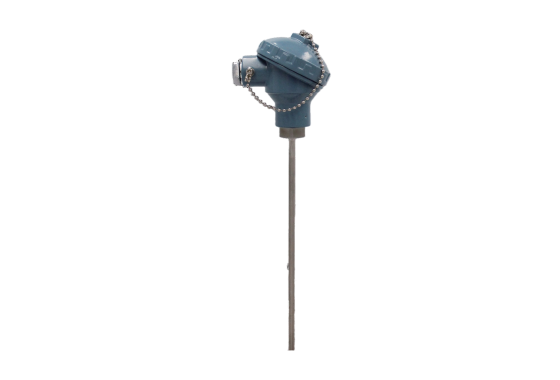

WR-K Armored Thermocouple
About WR-K Armored Thermocouple
HollySys WR-K armored thermocouple material is a composite structure consisting of thermocouple wires, insulating materials, and a metal sheath, which is subsequently processed into an armored thermocouple for temperature measurement through welding and assembly processes. Armored thermocouples primarily comprise junction boxes, terminal blocks, armored thermocouple elements, and various mounting and securing devices. The temperature-sensing elements of armored thermocouples are highly robust and durable, making them an ideal replacement for assembly-type thermocouples. As temperature measurement sen sors, armored thermocouples, when paired with display instruments and computer systems, enable direct the measurement and control of the temperature of liquid and gaseous media, as well as solid surfaces, within a range of -200 to 1800 °C in industrial production processes. They are extensively utilized in industries and research fields such as petroleum, chemical, power genera tion, metallurgy, and food processings.
Product Features
-
Diverse DimensionsThe measuring tip diameter can be as small as Φ0.5 mm, the length of the measuring tip can extend up to several meters
-
Rapid Response SpeedMinimizes dynamic errors effectively
-
Material EfficiencyReduces material usage, particularly for precious metal thermocouples
-
Small Bending RadiusAs low as 5 times the diameter of the measuring tip
-
Excellent Sealing and Mechanical PropertiesResistant to pressure, vibration, and impact
-
Superior Temperature ResistanceCapable of operating reliably under both low-temperature and high-temperature conditions
-
Standards CompliancePerformance metrics adhere to the JB/T9238-1999 Technical Conditions for Industrial Thermo couples standard, equivalent to IEC584.
Technical Parameters
-
Accuracy class
Class I, II, III
-
Measuring range
-200 to 1,800°C (Select device code)
-
Temperature sensor
Thermocouple (K, E, J, T, S, R, B)
-
Sheath material
304SS, 316SS, 316L, 310S, GH3030, GH3039 (can be customized by user)
-
Hosing material
Aluminium alloy, 304SS
-
Ingress Protection
IP66
-
Electrical Connection
M20 × 1.5 or 1/2" NPT
