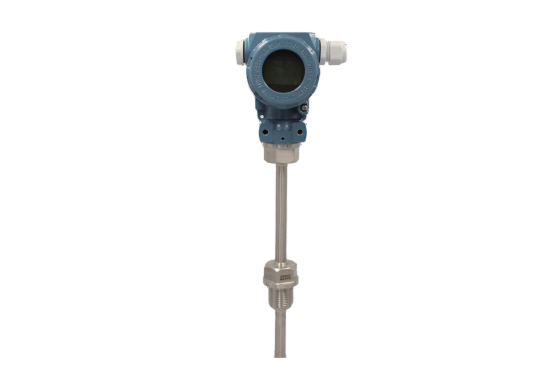

SBWR/SBWZ Integrated Temperature Transmitter

About SBWR/SBWZ Integrated Temperature Transmitter

HollySys SBWR/SBWZ integrated temperature transmitter is a combination of a thermocouple (TC) or resistance temperature detector (RTD) with an integrated temperature transmitter module. This system comprises both the temperature sensing element and the associated transmitter. The temperature transmitter is housed within the junction box (case) of the temperature sensor, enabling it to directly convert the resistance or voltage signal detected by the sensor into a corresponding 4 to 20mA or 4 to 20mA + HART analog signal that represents the measured temperature. This device serves as an integrated field installation transmission unit for temperature measurement instruments and finds extensive application across various industries, including petroleum, chemical processing, metallurgy, electric power generation, food production, pharmaceuticals, and other scientific research fields. The integrated temperature transmitters are available in two types: standard type and explosion-proof type. In environments where there are no explosion-proof requirements, users should opt for the standard type; however, when flammable or explosive substances may be present during installation or operation, it is imperative to select an explosion-proof integrated temperature transmitter. Furthermore, it is essential that the ambient installation environment remains within a specified range of -25°C to 85°C. Users should also choose appropriate measurement ranges and accuracy levels based on their specific measurement needs.


Product Features

  • icon17.svg
    2-Wire Output Design

    Utilizes two wires for both power supply and signal transmission, reducing the need for additional transmission lines and costly compensation wires

  • icon18.svg
    Easy Installation and Maintenance

    Fewer wiring requirements lead to simpler installation and maintenance, significantly lowering the overall cost of the temperature measurement system.

  • icon19.svg
    Stable and Reliable Signal Output

    Directly outputs a 4 to 20 mA DC signal with strong anti-interference capability and excellent long-distance transmission performance

  • icon01-106.svg
    Cold Junction Compensation and Nonlinear Correction

    Equipped with cold end compensation and nonlinear correction functions, ensuring the output signal maintains a linear relationship with the measured temperature

  • icon03-490.svg
    Compatible with Display and Control Systems

    The measured temperature can be directly displayed on-site via a display meter or input into a computer control system; it can also be used in conjunction with secondary instruments.

  • icon12-383.svg
    Flexible Installation Options

    The temperature transmitter and sensor can be installed either integrally or separately, offering flexibility for different user needs.

  • icon13-814.svg
    Durable Encapsulation

    The transmitter module is encapsulated with epoxy resin or silicone gel, providing wide ambient temperature adaptability, corrosion resistance, vibration resistance, and low static power consumption.

  • icon14-516.svg
    High Reliability and Long Service Life

    Designed for safety and durability, ensuring reliable performance under harsh conditions and extended operational lifespan

Technical Parameters

  • Input signal (TC)

    Graduation K, E, J, T, S, R, B

  • Input signal (RTD)

    Graduation Pt100

  • Output signal

    4 to 20 mA, 1 to 5 V DC

  • Ambient temperature

    -40 to 85ºC

  • Working power supply voltage

    12 to 30 V DC

  • Rated voltage

    24 V DC (with reverse protection function)

  • Stability

    Output changes within 12 months ≤ 0.1%

  • Indication accuracy

    Grade 0.1, Grade 0.2

  • Wiring

    2-wire

  • Display

    LED, LCD

  • Process connection (Threaded)

    Fixed thread, adjustable thread joint, fixed thread (tapered sheath)

  • Process connection (Flanged)

    Fixed flange, adjustable flange

  • Sheath material

    304SS, 316SS, 316L, GH3030, GH3039 (can be customized by user)

  • Sheath O.D.

    Φ6, Φ8, Φ10, (can be customized by user)

  • Case material

    Coated cast aluminum , 304SS, 316SS

  • Ingress protection

    IP66
