System Introduction
Continuous transmission of movement authority (MA) from track to train via track circuit, spot transmission of line data, route status and temporary speed restricted information from track to train via balises. Train Control Center generates train operation permission (low frequency information and Temporary Speed Restriction) and send to the on-board equipment through variable balise and frequency shift track circuit. Balises are needed to transfer positioning information, line parameters, speed limit and parking location information to the onboard equipment.

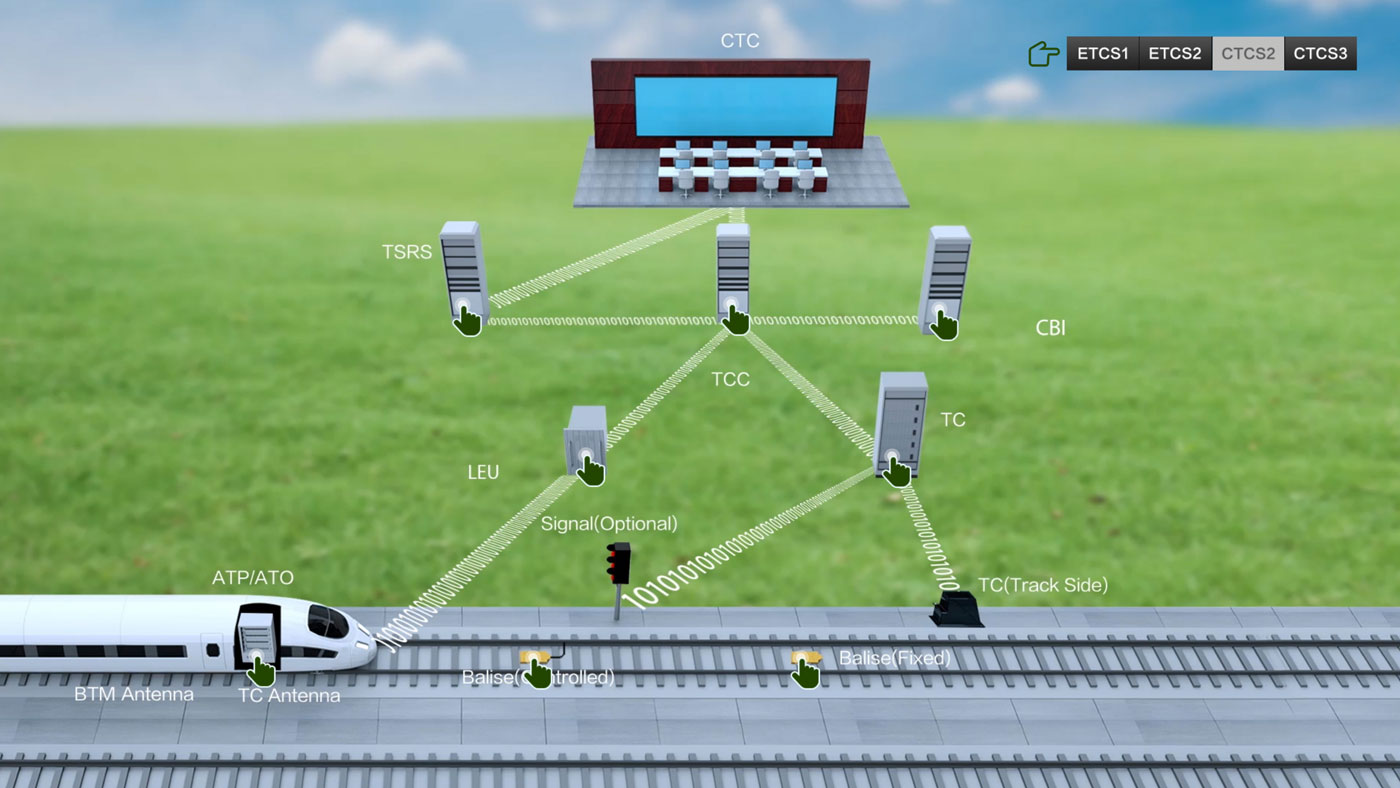

System Composition Diagram
-
ATP Functions
Overspeed protection and braking
Protection of train operation
Door supervision
Rear speed limit maintenance
Train integrityed supervision
Level Transition
Train speed measurement and positioning
-
Features
SIL4 safety certification
Comply with ERTMS/ETCS Subset-036/Subset-085
IP68
Low power consumption and short response time
-
Core Functions
Communication management
Verification,storage and prompt of temporary speed limit command
Send temporary speed limit command
Temporary speed limit command cancelled
Temporary speed limit command deletion
Sending verification result,execution result and prompt status information of temporary speed limit command
Fault self-diagnosis,maintenance management and alarm
-
Core Functions
Real-time framing and sending of responder messages
Track coding
The interval is controlled by signal
Interval logic occupancy check
Interval operation direction and block control
Inter-station communication
Disaster protection
Fault self-diagnosis,maintenance management and alarm
-
Features
SIL4 safety certification
Support relay interface and Ethernet interface
Comply with ERTMS/ETCS Subset-036/Subset-085
Detection of cable open and short circuit status
Support indoor and outdoor installation
-
Features
SIL4 safety certification
Support communication coding and relay coding
Double safety check
Dynamic detection to improve shunt failure
Tuning area optimization
Double isolated and redundancy protection for outdoor equipment
Sender and receiver can achieve "1+1"redundancy
Integrated structure reduces cost and is easy to implement
Easy maintenance
-
Features
SIL4 safety certification
Comply with ERTMS/ETCS Subset-036/Subset-085
IP68
Low power consumption and short response time
-
Core Functions
Route control
Signal control
Point control
Track section control
ESB monitoring
Platform door monitoring
Disaster information monitoring
Code control
Block control
Inter-site/inter-station contact
Level Crossing notice
Locomotive Depot Contact
Fault self-diagnosis,maintenance management and alarm
Features
-
Safety and Reliability
-
It is based on the principle of fail-safe, conforms to IEEE, IEC, CENELEC standards and national railway standards. The core equipment such as train control center, interlocking, track circuit, on-board ATP, LEU, balise have got SIL4 safety certificates. The control equipment has proven record of reliablity and performs various functions of self-inspection, self-diagnosis and maintenance, which guarantee the safe operation of trains.
-
-
ATO Functions Support
-
The system can be configured with Automatic Train Operation (ATO) (GoA2) equipment in order to realize automatic train operation.
-
-
Transport Efficiency
-
The system can ensure the safe operation of trains at a high speed up to 250km/h, with a minimum 3 minutes train headway and high transport efficiency.
-
Related Products
-
Temporary Speed Restriction Server (TSRS)
-
Computer Based Interlocking (CBI)
-
On-board Control Equipment
-
Centralized Traffic Control System (CTC)
-
Balise Transmission Module (BTM) and Antenna
-

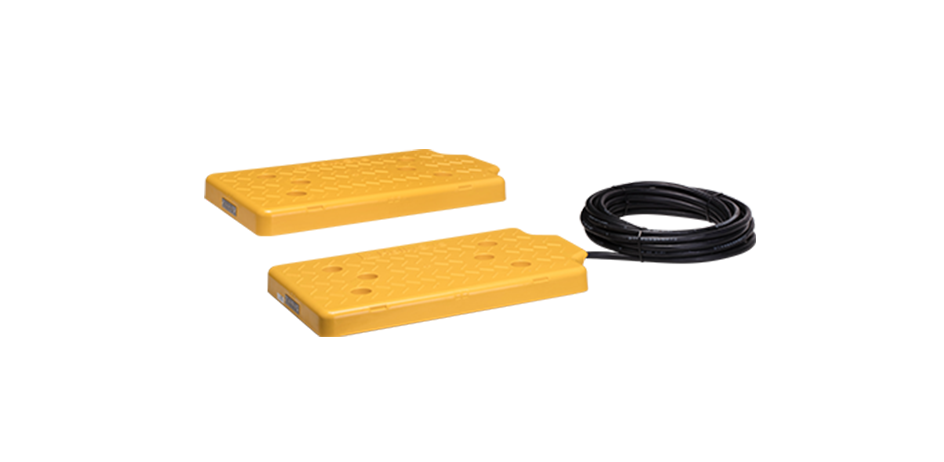

Balise (Controlled & Fixed)
-
Jointless Track Circuit (TC)
-
Lineside Electronic Unit (LEU)
-
Driver Machine Interface (DMI)
