Railway Basic Signalling System Solution

System Introduction

In order to meet the needs of customers who construct railway lines with limited investment, HollySys has developed a set of Basic Signalling System (BSS) which conforms to global standards, is safe and reliable, can be deployed quickly with low investment.

BSS system is composed of Centralized Traffic Control system, interlocking system, train detection system, point machine, signal and maintenance monitoring system, etc. The BSS realizes the functions of centralized dispatching management of trains, safety train operation, signal display & control and maintenance diagnosis. BSS can work independently or as a backup signalling system of more advanced level signalling system.

BSS system, as a basic signalling system, can be upgraded to other advanced level signalling system easily. It can be used for railway project with construction requirement of gradual upgrade in different phases.

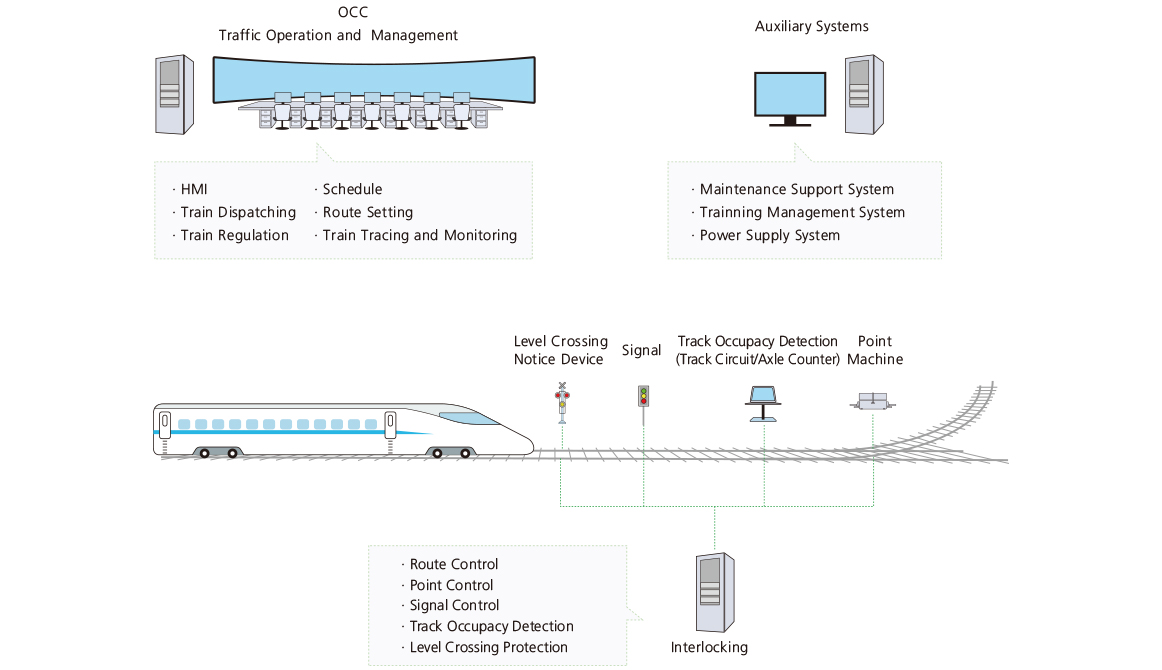

System Composition Diagram

  • Array
  • Array
  • Array
  • Array
  • Array
  • Array
  • Array
  • Array

Features

  • icon03.svg
    Safety and Reliability
    • The control equipment has proven record of reliablity and fulfills various standards. The core equipment such as interlocking and train detection system have got SIL4 certification. Based on the principle of failsafe, with functions of self-inspection, self-diagnosis and maintenance, BSS guarantees the safety and reliable operation of trains.

  • icon04.svg
    Expansibility
    • The system adopts modular and standardized design, can be easily expanded to meet the needs of extension and renovation, to realize a larger scale project.

  • icon05.svg
    Flexibility
    • The interlocking system can be equipped with centralised or regionally distributed according to user requirements. The interface between the interlocking host and I/O devices can be wired or wireless.

  • icon06.svg
    Compatibility
    • With standardized universal interface protocol and modular system design, it can be overlaid and upgraded to other more advanced signalling systems.

Customer Value

  • Short Construction Period

    Mature solutions and system equipment in a modular and standardized design way, assembly and testing in factory make it easy to be implemented. It is helpful for shortening the construction period.

  • Upgrade Gradually

    After the signalling system is put into operation, it can be seamlessly upgraded to a signalling system with higher automation level by a simple superposition renovation if needed.

  • Low Investment

    Basic signalling control system and high-reliability equipment with maintenance support system can reduce construction and maintenance costs.

  • Customized Service

    The display of HMI (icons, layouts, etc.) and operation manner can be customized according to different national standards, different user requirements and site conditions.
